GOING tech smart wifi door bell camera with 8gb recording card

FOB Reference Price:Get Latest Price
$22.00 - $49.10 / Acres | 1 Acre/Acres (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
GOING tech
Model Number:
X3-ML1
Power Source:
Battery, Plug
Doorbell Type:
Wireless
wireless:
802.11n,150M wifi lan card
Resolution:
720P
Network:
WiFi network connection
Battery:
2X2600mAH
Lens:
140degree wide view range
OS:
Huawei LiteOS
Standby time:
300days
Video call:
App
Storage:
TF card
Ring bell:
Wireless ring bell inclued
Type:
Doorbells
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
10pcs per CTN
Port
sz/hk
Lead Time :
1days

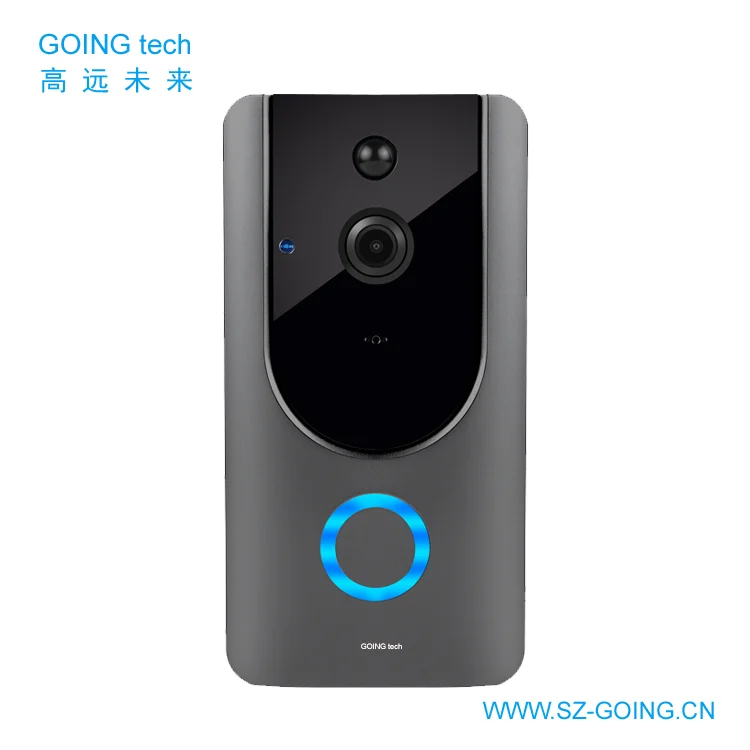

GOING tech smart wifi  door bell camera with 8gb recording card

Product Model #: X3-ML1

 Main parameters:



X3-ML1 doorbell camera

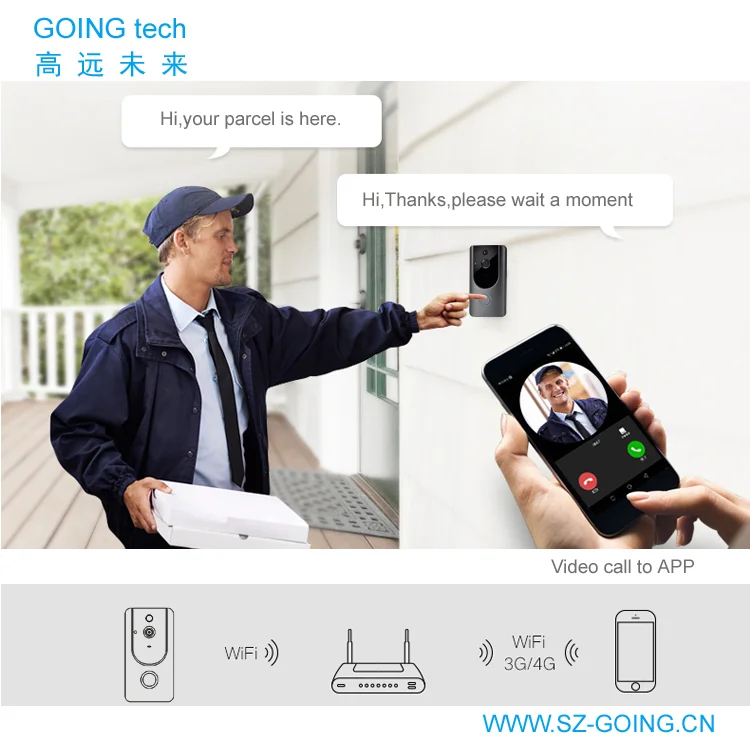

1.Smart video call doorbell with two way audio.

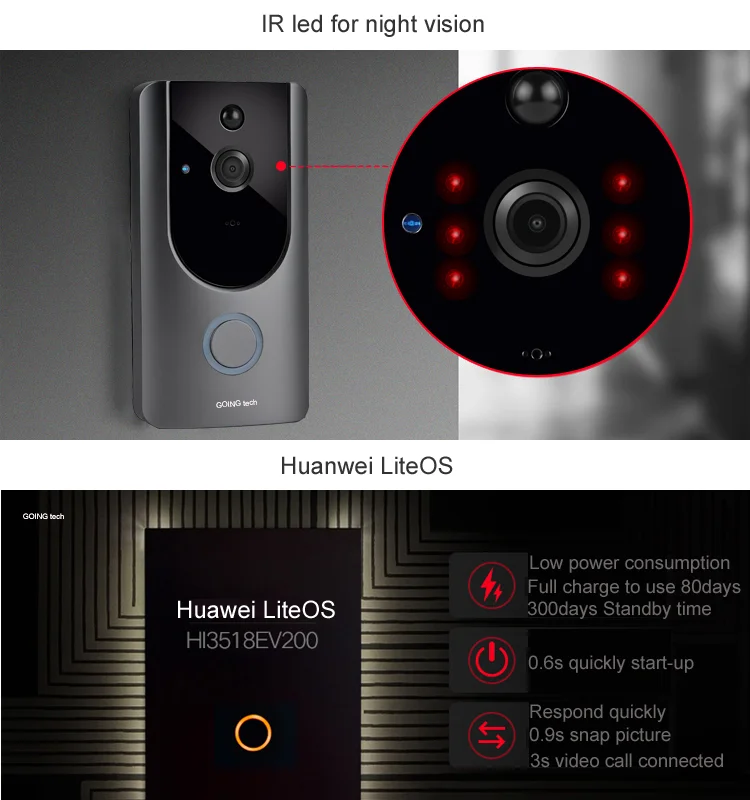

2.HD1 megapixels resolution,140degree view range,IR led nigt vision.
3.H.264+ compression,low bit rate, high-definition picture quality.
4.Huawei LiteOS,low power consumption,300days standby time,80days working time(press button 10 times )
5.Quickly respond,0.6s to wake up,0.9s to snap picture,3s video call connected.
6.Inclued free wireless ring bell,support other 433 wireless ring bell too.
7.Auto snap picture and record when doorbell button is pressed.
8.Loitering detection,Send alarm message when it detected loitering people

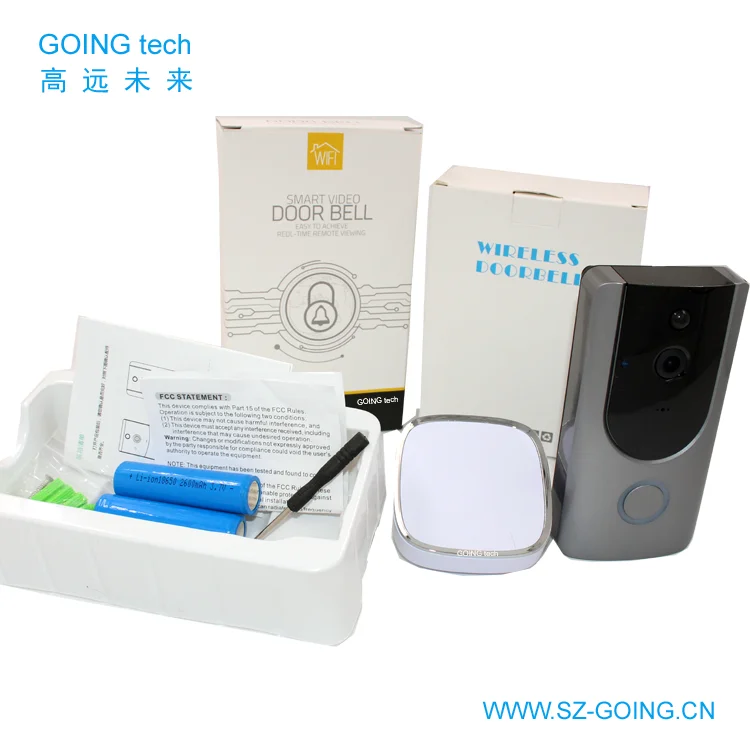

 Items included:

WiFi door bell camera x1pcs

Wireless ring bell x1pcs

2600mAh Li battery x2pcs

TF cardx1pcs(Optional)



X3-ML1 Datasheet



Specifications

X3-ML1

system structure

Embedded RTOS design, dual-core 32-bit DSP (Hi3518EV201), hard-compressed, watchdog

sensor

1 megapixels 1/4" SC2145H CMOS sensor; color 0.1Lux-F1.2, black and white 0.01Lux-F1.2

Video processing

H.264+/H.264 video encoding, support dual stream, AVI format; support stream adjustable 0.1M~6Mpbs; support frame rate adjustable from 1 to 30 frames per second

Image output

Main stream: 1280*720-25fps; Sub stream: 704*576-25fps

shutter

1/50 (1/60) second to 1/10000 second

Lens

140 degree wide range

Day and night

IR-CUT auto switch

Noise reduction

Supports 2D/3D noise reduction

Wide dynamic

Supports digital wide dynamics

Audio processing

G.711A code standard, support two-way voice intercom function, support audio and video synchronization

Audio input

Build-in Mic

Audio output

Build-in Speaker

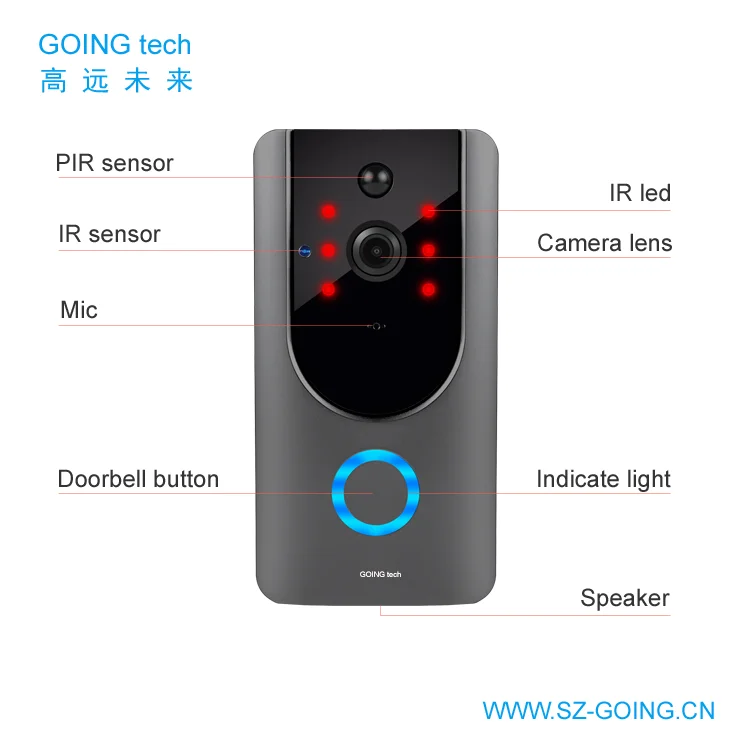

Human sensor

PIR infrared human sensor, support passive infrared sensor

WIFI antenna

Build-in1 WIFI antenna interface,

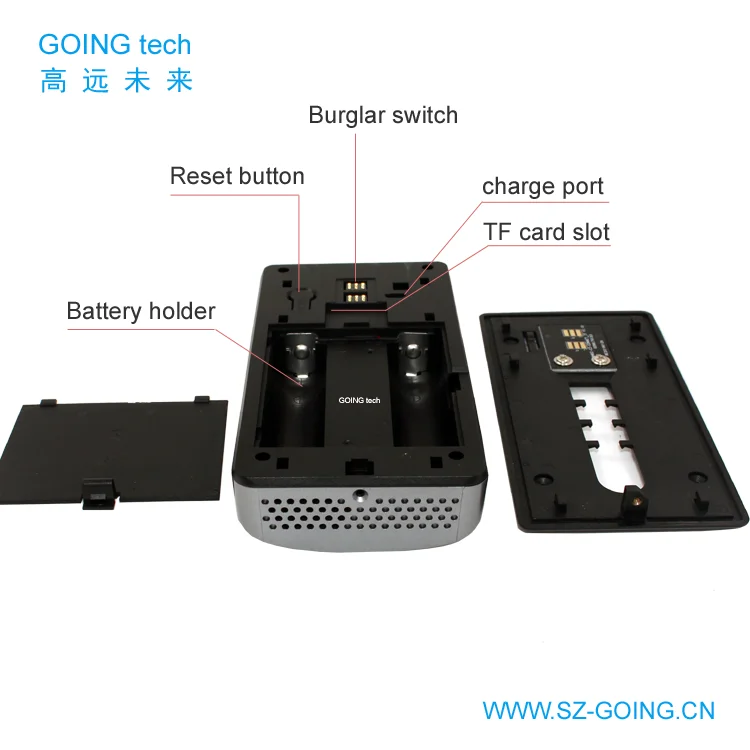

Reset key

One reset button

Memory card

Max support 32GB

reliability

 7*24 hours high temperature test at 65°C is stable and reliable (including testing of the whole machine)

Phone monitoring

Supports mobile monitoring (iOS, Android)

power supply

DC5V or 2x18650 rechargeable Li battery

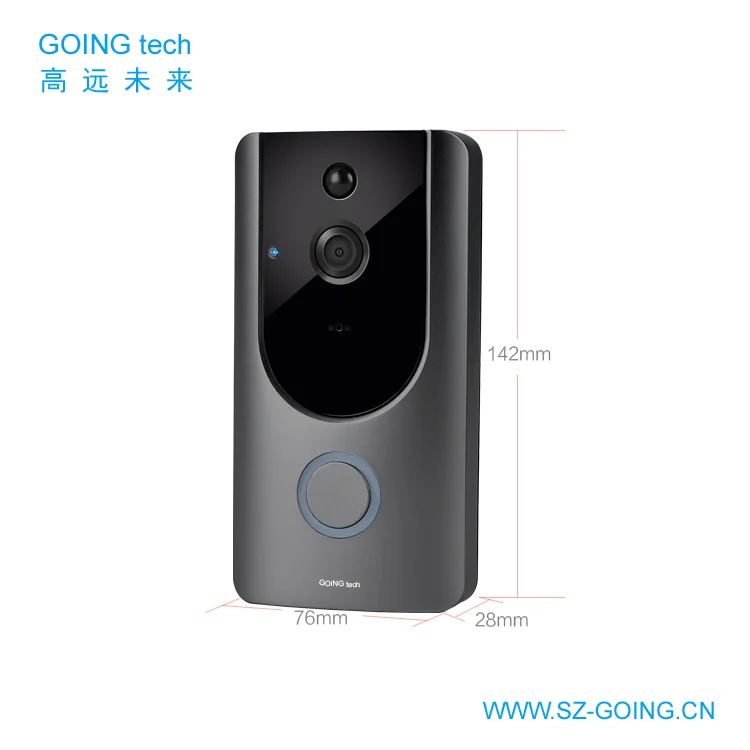

size

76mm*28mm*142mm

weight

0.4KG

GOING tech is one manufacture has 10 years high end ip camera quality control experience,6 years professional 3g/4g camera and solar ip camera manufacture experience,Exported to more than 100 coutries
